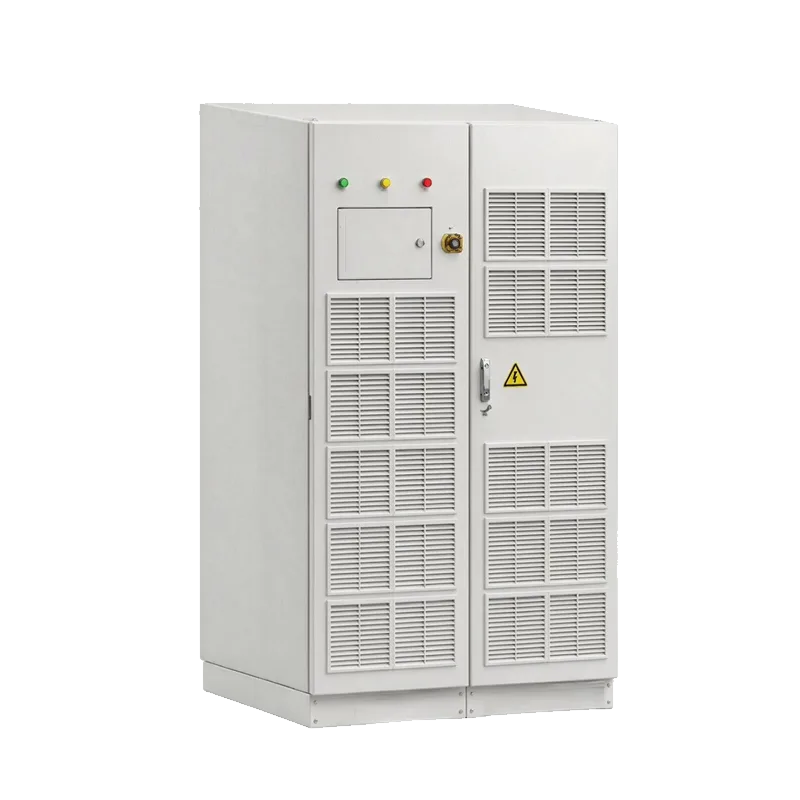

SP750H54PSTD All-in-One Cabinet
The SP750H54PSTD all-in-one cabinet integrates a PCS, EMS, isolation transformer and AC/DC distribution…
Specialising in AC/DC microgrid solutions and R&D of core equipment — PCS, MPPT, STS.
Browse by category
Supports DC/AC coupling with optional built-in STS, suitable for 125 kVA-class energy storage microgrids

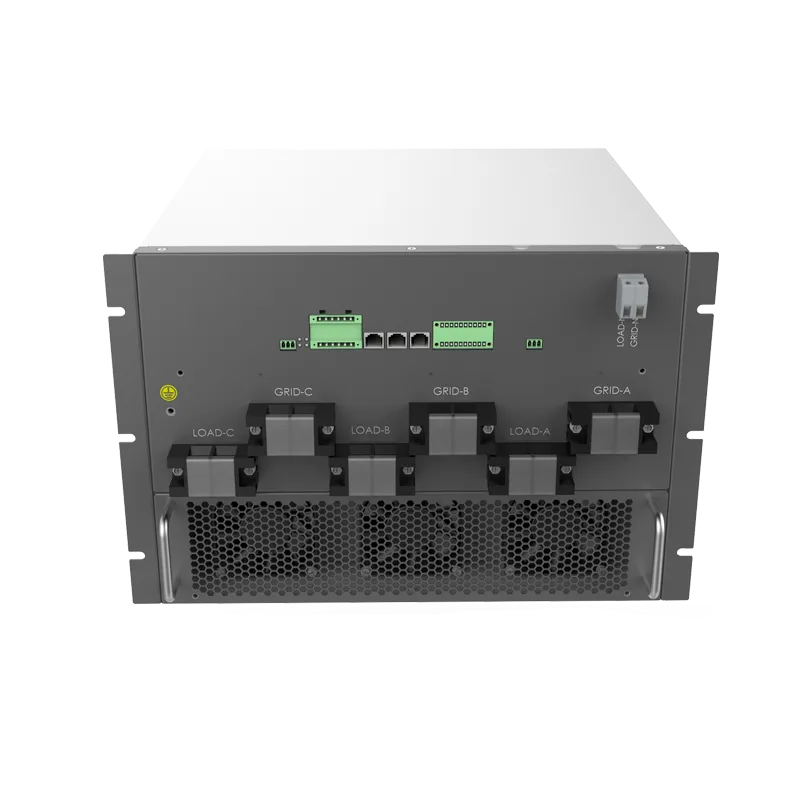

200–600 kW static transfer module, transfer time less than 20 ms, supporting seamless on-grid/off-grid transition
STS Cabinet
30–60 kVA with isolated air duct design, compatible with 280/314 Ah cells, integrated on-grid/off-grid switching device
150/200 kW wall-mounted high-protection controller, 200–1000 V wide voltage input, multiple MPPT

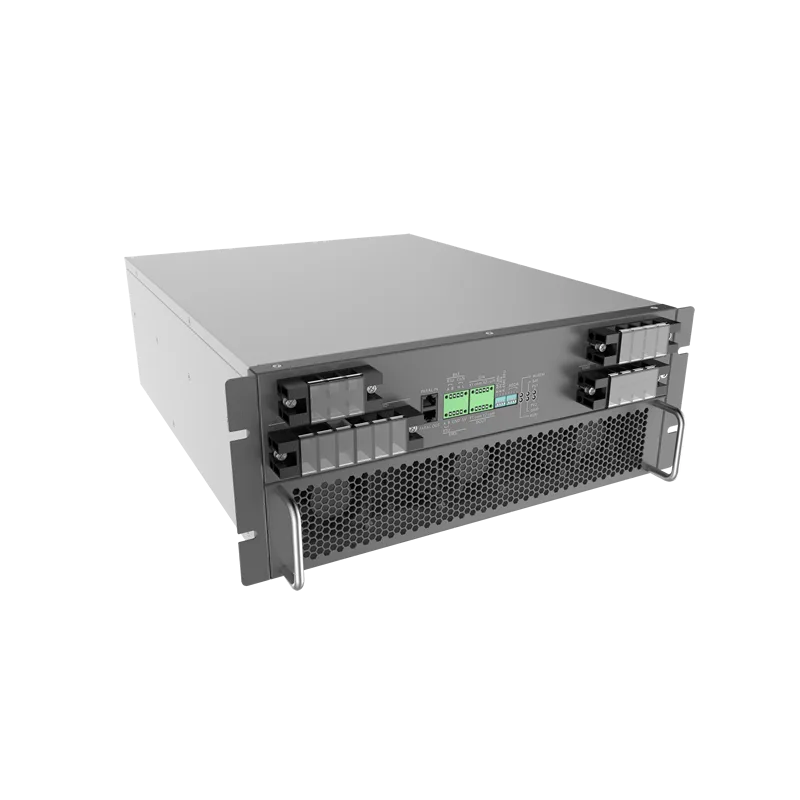

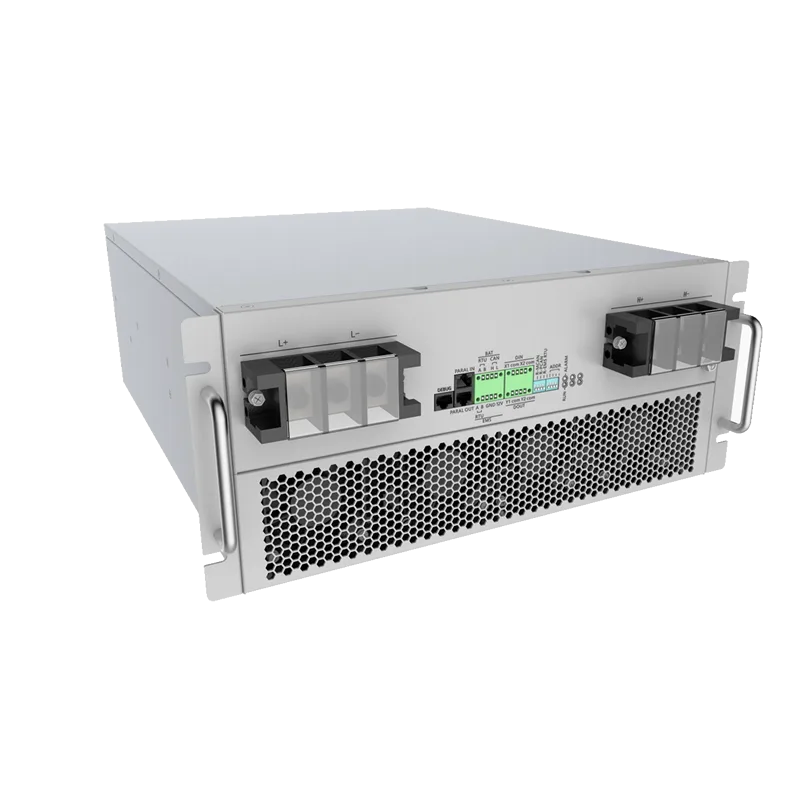

60–210 kW isolated-airflow DC converter, supporting bidirectional buck-boost and a wide 200–950 V input
VGRID POWER SAEMS energy management system: coordinated dispatch of PCS, PV, storage, diesel and loads with on/off-grid strategies, black start and remote O&M.
The VGRID POWER wall-mounted Hybrid PCS is a high-efficiency, high-reliability, high-protection 4-in-1 converter (PCS, EMS, STS, ATS) for small and medium microgrids. It supports 20+ units in parallel off-grid, hybrid operation with diesel generators and PV input, covering DC coupling, AC coupling, PV-storage-charging and diesel-storage applications.
VGRID POWER wall-mounted PV MPPT: high-efficiency MPPT for residential and small microgrids.
VGRID POWER microgrid AC all-in-one cabinet with transformer: PCS, STS and EMS integrated, ready to energise.
An all-in-one unit integrating PCS, MPPT, EMS and transfer switch, covering 250–750 kVA for commercial and industrial applications
DC module combiner cabinet
Our highest-volume items, ready to ship in 15–30 days.
The SP750H54PSTD all-in-one cabinet integrates a PCS, EMS, isolation transformer and AC/DC distribution…

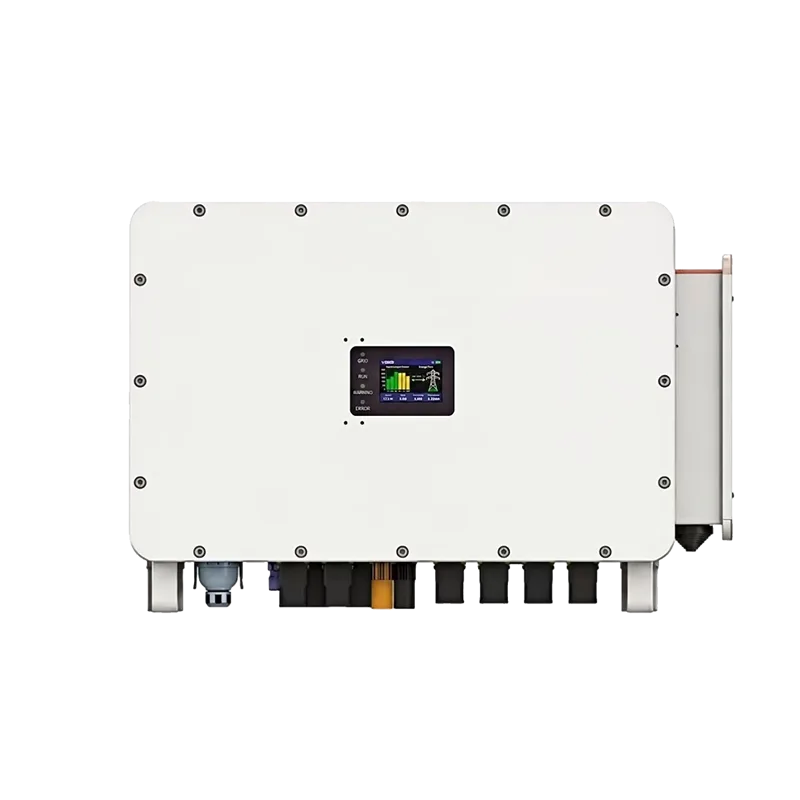

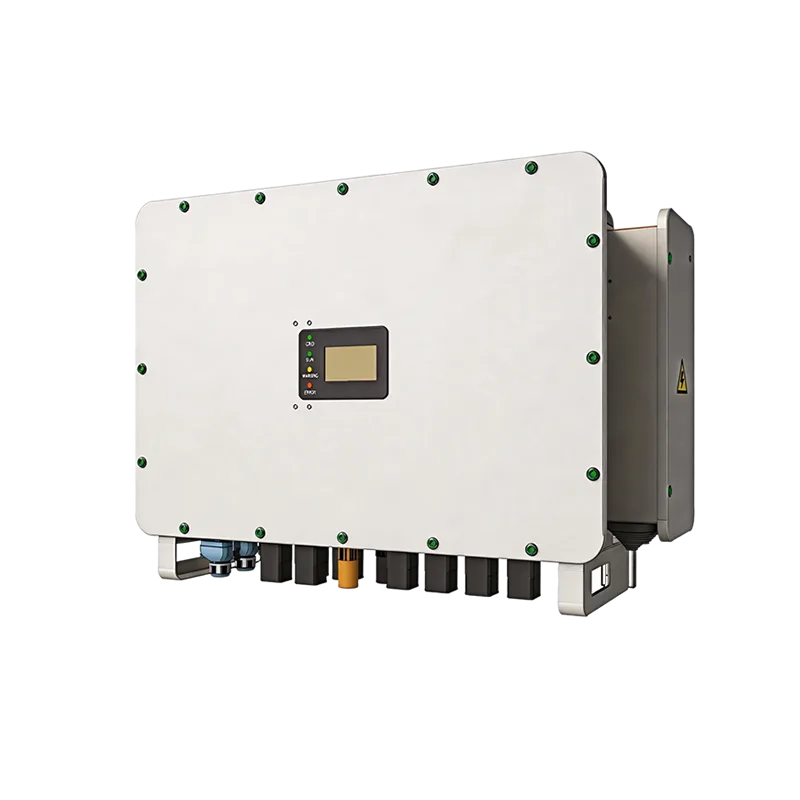

LEONA-H135K(SP135HAPSS) Series Microgrid Energy Storage Converter is a high-protection (IP65) wall-mounted…

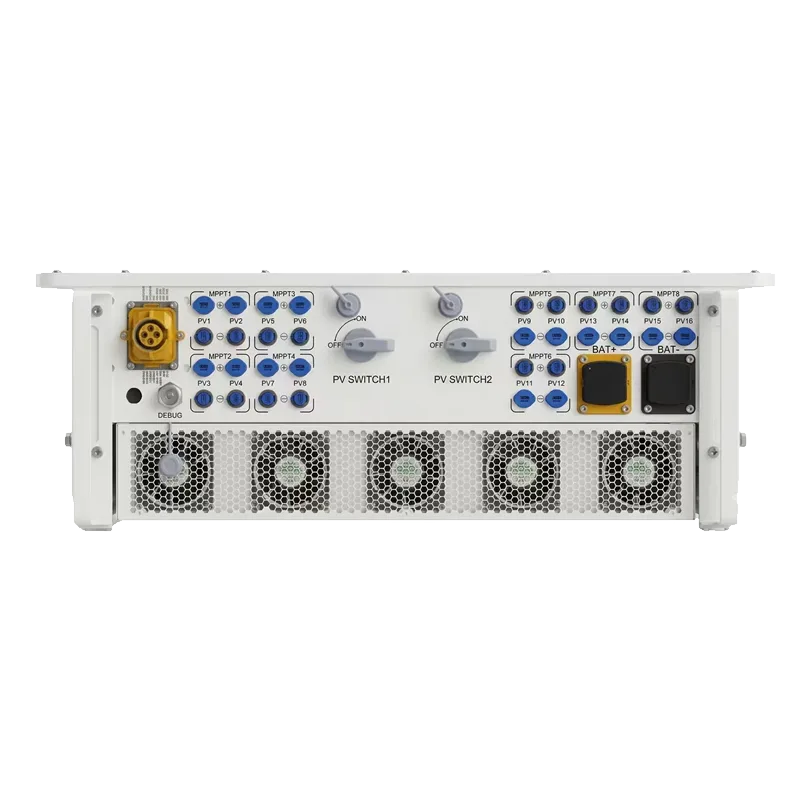

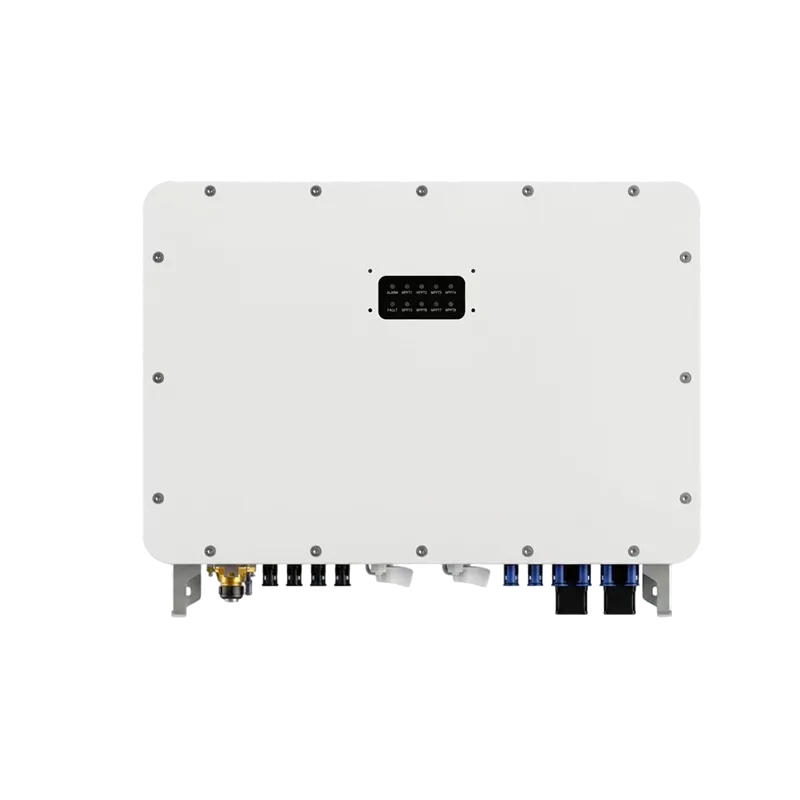

The SP200HAPV Series PV MPPT Controller is a high-protection (IP65) wall-mounted PV controller featuring…
No trading company margin. We own the machining lines and the test laboratory.
ISO 9001:2015, CE / PED. EN 10204 3.1 with every shipment.
EXW, FOB, CFR, CIF, DDP. Sea, air and express courier.
Logo marking, custom dimensions, special alloys and retail packaging.
Every item below is in regular production.
The SP750H54PSTD all-in-one cabinet integrates a PCS, EMS, isolation transformer and AC/DC distribution…

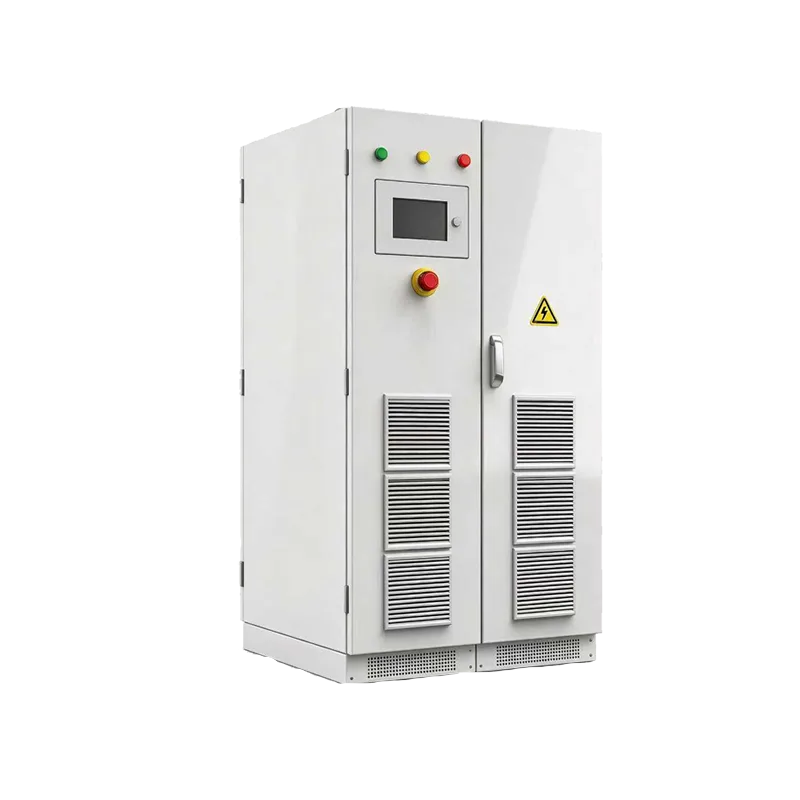

The SP250HAG2T solar-storage grid-connected/off-grid all-in-one cabinet integrates a PCS, MPPT, EMS, PCM…

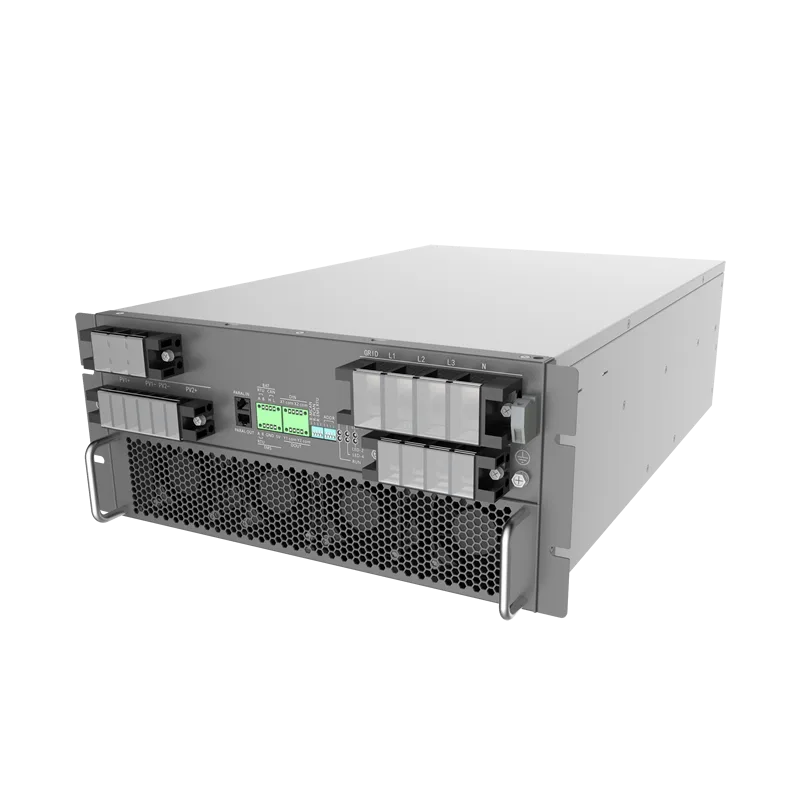

The SP60/50/40/30HCG2 series hybrid inverter features isolated air ducts and a wide-voltage, high-current DC…

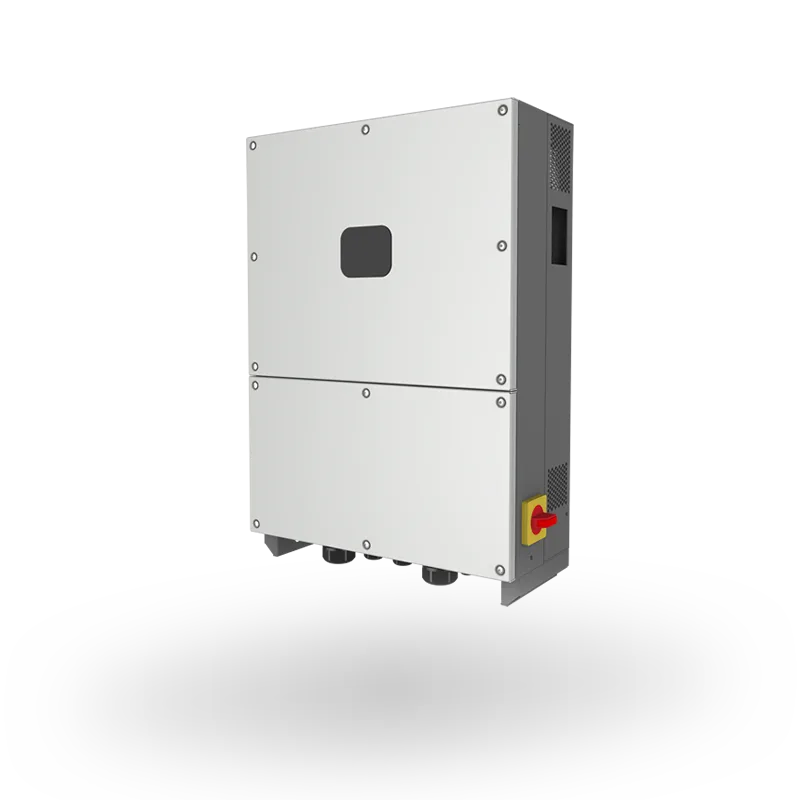

The SP125HCPS Series Microgrid Energy Storage PCS is a high-efficiency, high-reliability energy storage…
LEONA-H135K(SP135HAPSS) Series Microgrid Energy Storage Converter is a high-protection (IP65) wall-mounted…
Selection guides and technical explainers.
Both split hybrid inverters share the same VSG grid-forming core, PQ/VF/droop modes and LEONA-M200K MPPT platform, yet they differ in power class, battery voltage window, isolation and installation. The B750K is a 750/825 kVA IP54 floor cabinet with a built-in Znyn0 transformer; the H135K is a 135/148.5 kVA IP65 wall unit of about 85 kg. Start with the continuous load, the battery cluster voltage and the site lifting conditions.
The VGRID POWER technical library divides microgrid inverter evolution into three stages: a simple off-grid inverter, a dual-mode inverter with seamless on/off-grid transfer, and a grid-forming inverter that always behaves as a voltage source. This is not merely a reduction of transfer time from hundreds of milliseconds to 10 ms; the dividing line is whether the control structure changes abruptly. In always grid-forming operation, grid-connected and islanded are only connection states, not operating modes.
The VGRID POWER AEMS100 quick-commissioning guide starts with wiring: verify the 5 V supply of AEMS100 and SP30HBG2, PCS communications, battery-cluster communications and the WiFi/4G module before touching parameters. A missing link makes later configuration pages unreadable. Once the screen returns to the home page, configure the project items one by one and read back the key variables.
It depends on whether the installed equipment supports grid-forming operation. Standard grid-tied PCS units cannot establish voltage and frequency on their own; adding an STS/PCM module on the AC bus and a grid-forming PCS is usually required. Reserving the interface at design stage is recommended.
Align firmware versions, droop and current-sharing parameters, DC voltage windows and protection settings, then commission under load. Above single-unit capacity, use N+1 redundancy and recheck short-circuit capacity and cable ampacity.
Provide a load schedule with 15-minute load data, daily energy use, required autonomy days, PV and diesel capacity, battery chemistry, local grid code and ingress-protection requirements. We return a single-line diagram, bill of materials and acceptance test plan.
